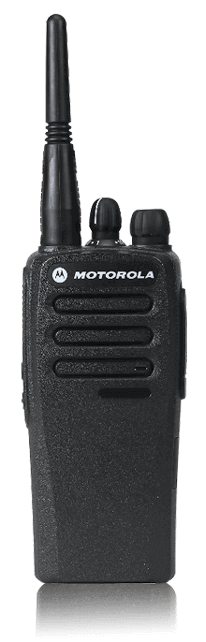

Motorola CP200 XLS Portable Two-Way Radio

This product may no longer be manufactured or available for sale.

The CP200XLS expands upon the features of the CP200 Portable Radio and features both conventional and LTR® trunking capability. The CP200XLS enables users to efficiently organize a large workforce. With both limited and full keypad models, the CP200XLS also features an 8-character alpha-numeric display, four programmable buttons for quick access to up to eight programmable features, and X-pand™ technology for crisp, clear audio – all in a lightweight, durable design.

  • Backlit 8-character alphanumeric display with user
    Display indicates radio status, battery levels and allows for viewing of channel names and caller IDs.
  • Expansive coverage with LTR Trunking
    Support up to 10 sites and 100 talkgroups in LTR mode
  • Flexible channel capacity
    Operates on up to 128 conventional channels
  • Full DTMF Keypad model
    Enables additional features such as dialing a phone number and manual access repeater
  • Large rotary channel selector
    Continuous rotary allows quick and easy channel changes
  • Programmable button flexibility
    Two side and two front buttons support up to eight favorite features
  • Quik-Call II™ Signaling
    Enables features such as selective call encode and call alert encode
  • Repeater Capability
    Supports up 20 repeater sites in LTR mode
  • Scan capability
    Supports up to 16 scan lists of up to 16 channels per list (Limited Keypad model only)

Due to the FCC Narrowbanding mandate in the United States, product specifications and brochures for Motorola Solutions two-way radio products may indicate 25 kHz/12.5 kHz analog/digital operation which may not be the standard mode of operation at the time of shipment after Jan. 1st 2013.

Performance Characteristics

1 Watt
Yes

4/5 Watt
Yes

Adjustable power levels
Yes

Coverage area
Programming software allows adjustable power output for varying coverage

Estimated battery life1
14 hours

Frequency band
VHF, UHF

Frequency range
VHF: 136-163, 146-174MHz UHF: 403-440, 438-470, 465-495 MHz

Repeater capable
Yes

Standard battery chemistry type
Lithium Ion

Physical Characteristics

Dimensions H x W x D (with standard battery)
5 x 2.4 x 1.75 in

Display
Full, Limited

Emergency button
None

Keypad
Full, Limited

Weight (with standard battery)
14.98 oz.

Radio Features

Call tones
Quik Call II

Channel spacing (kHz)
12.5, 25, 20

CPS (Customer Programming Software)
Yes

Digital Private Line
84

Missed call alerts
Yes

Monitor/Permanent (Sticky) Monitor
Yes

Number of channels
128

One to one calling
Yes

Private Line
42

Programmable buttons
Yes

Scan types
Normal, Priority, Nuisance channel delete, Talk group

Signaling
Quik Call II, DTMF, MDC 1200

Talkaround
Yes

Voice operated transmit (VOX)
Yes

Voice operated transmit (VOX)
Yes

X-pand voice compression and low level expansion
Yes

Technology

System type
LTR trunking

User Environment

IP Standards
IP54

Mil spec
810 C, 810 D, 810 E, 810 F

Warranty

Standard warranty
2 years
