  • Motorola MOTOTRBO™ XPR 6380 Portable Two-Way Radio

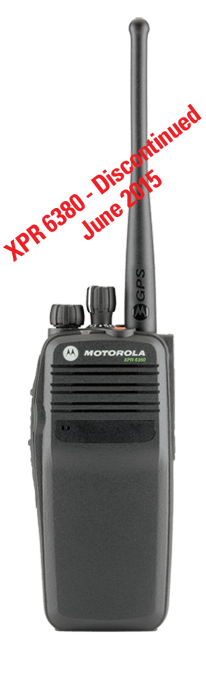

Motorola MOTOTRBO™ XPR 6380 Portable Two-Way Radio

This product may no longer be manufactured or available for sale.

The XPR 6000 is a digital workhorse with proven performance for demanding users. Featuring superior audio with optional Bluetooth, integrated GPS, text messaging and expert applications customized to your business, the XPR 6000 is a radio you can trust to keep your work teams connected.

For a more fully featured version of this radio, please see the XPR 7000 Series Portable Two-way Radio.

XPR 6000 Series Radios include:
XPR 6100 Non-Display Radio
XPR 6350 Non-Display Radio
XPR 6380 Non-Display Radio
XPR 6550 Display Radio
XPR 6580 Display Radio

The XPR 6550 has replaced the discontinued XPR 6500.
The XPR 6350 has replaced the discontinued XPR 6300.

  • Enables intervention during conversations to deliver critical communication exactly when and where it’s needed
  • Analog Trunking Capable
    Helps you to prepare for migration from analog to digital technology
  • Basic or Enhanced Privacy
    Built-in scrambling for increased security
  • Bright Sensors
    Tricolor LED indicator shows feedback of calling, scanning or monitoring features
  • Capacity Plus
    A scalable, single-site trunking solution that enables over a thousand radio users to share business-critical voice and data communication on the same system
  • Certified Intrinsically Safe
    Certified as intrinsically safe by FM and CSA Approvals when purchased and equipped with a FM battery for use in hazardous environments
  • Connect Plus
    With extended coverage and expanded voice and data capability, this multi-site digital trunking solution enables you to accommodate the high volume, wide area communication that’s required to keep your mobile work teams connected.
  • Customized Applications
    Features the industry’s largest third party application developer program for customized applications such as work order tickets, system management, email gateways, man-down, location tracking, telephony, dispatch and much more
  • Digital Telephone Interconnect
    Communicate between radios and landline or mobile phones
  • Emergency Button
    Alerts supervisor or dispatcher during an emergency situation
  • Emergency Signaling
    Sends a help signal to a predefined person or group
  • Integrated GPS
    Track vehicles and assets without additional equipment to purchase, install or maintain
  • IP Site Connect
    Extend communication between multiple locations, create continuous wide area coverage or enhance single site coverage
  • Rugged Design
    Tightly sealed against wind and dust, and submersible in up to one meter of water for 30 minutes
  • Text Messaging
    Use text messaging when discretion is required or routine communication needs to be delivered without interrupting workers or guests
  • Transmit Interrupt
    Enables intervention during conversations to deliver critical communication exactly when and where it’s needed
Performance Characteristics

2 Watt
Yes

Estimated battery life1
Conventional Models – Analog: 13 hoursDigital: 17 hours; Analog Trunked Models – 12 hours

Frequency band
800 MHz, 900 MHz

Frequency range
800 MHz; 900 MHz

Repeater capable
Yes

Standard battery chemistry type
Lithium Ion

Physical Characteristics

Available option board
Yes

Dimensions H x W x D (with standard battery)
Conventional Models: 5.18 x 2.50 x 1.39 in (131.5 x 63.5 x 35.2 mm); Analog Trunked Models: 5.18 x 2.40 x 1.38 in (131.5 x 61 x 35 mm)

Display
No display

Emergency button
Yes

Keypad
None

Weight (with standard battery)
Conventional Models: 13.17 oz; Analog Trunked Models: 12.7 oz.

Radio Features

Advanced Software Features
Remote Monitor

Channel spacing
6.25, 12.5

CPS (Customer Programming Software)
Yes

GPS operation
Yes

Integrated voice and data
Yes

Man down
Yes

Programmable buttons
Yes

Scan types
Dual priority

Signaling
Digital Enhanced Call Management – Encode/Decode: call alert, emergency, push-to-talk ID, radio check, remote monitor, private call, all call, transmit interrupt; MDC 1200 signaling; Quik-Call II™ signaling

Talkaround
Yes

Text messaging capable
Yes

Technology

Digital technology
Yes

System type
Conventional, SmartZone trunking, SMARTNET trunking, Privacy Plus trunking

User Environment

Factory Mutual
Yes

Intrinsically safe
Yes

IP Standards
IP57

Mil spec
810 E, 810 F

Noise reduction software
Yes

Submersible
Yes

Warranty

Standard package
Non-Display Portable Radio, Standard Whip with GPS Antenna, IMPRES™ Li-Ion 2150 mAh Submersible Battery, IMPRES single unit charger, 2.5″ Belt Clip, Expansion Card, User Guide, Two-year Standard Warranty plus One-year Repair Service Advantage (US only) /

Standard warranty
2 years
